Euchner MGB PLe GL. The MGB (Multifunctional Gate Box) is an interlocking or guard locking system suitable for environments with extremely tough safety. Download free 3D files & 2D drawings – MGB-AR/AP. The MGB (Multifunctional Gate Box) is a unique interlocking or guard locking system for the protection of safety doors on machines and systems. The MGB offers.

Author: Kegal Dura
Country: Trinidad & Tobago
Language: English (Spanish)
Genre: Career
Published (Last): 15 May 2006
Pages: 46
PDF File Size: 15.25 Mb
ePub File Size: 1.68 Mb
ISBN: 702-6-28912-434-1
Downloads: 57187
Price: Free* [*Free Regsitration Required]
Uploader: Voodoojin

In combination with the optional escape release, it is therefore possible to protect almost any safety door.

Multifunctional Gate Box

Four LEDs indicate information about the lock status. MGB L2 is electrically locked and mechanically unlocked or solenoid power can be removed.

No separate tools are required for installation. It is more than a safety switch, more than a bolt, and offers a lot more functionality. With immediate effect the color covers for the pushbuttons on all MGBs from Euchner can be individually adapted and changed. In addition, emergency stop devices on MGB versions with cable entries will in future be equipped with an additional auxiliary contact. If the function of the buttons should change, this change can ngb depicted straightforwardly with euchnsr.

Simply put in place and click into position, that is it, the color of the pushbutton has been adapted, and that with degree of protection IP The lock has an intelligent plunge whose position is detected by an RFID transponder which has a unique code.

This contact permits even more precise diagnostics in the control system, in particular if several MGBs are connected in series.

MGB L0 is a non-locking unit that can be opened at any time.

  ELEKTROTECHNIKA ALAPJAI PDF

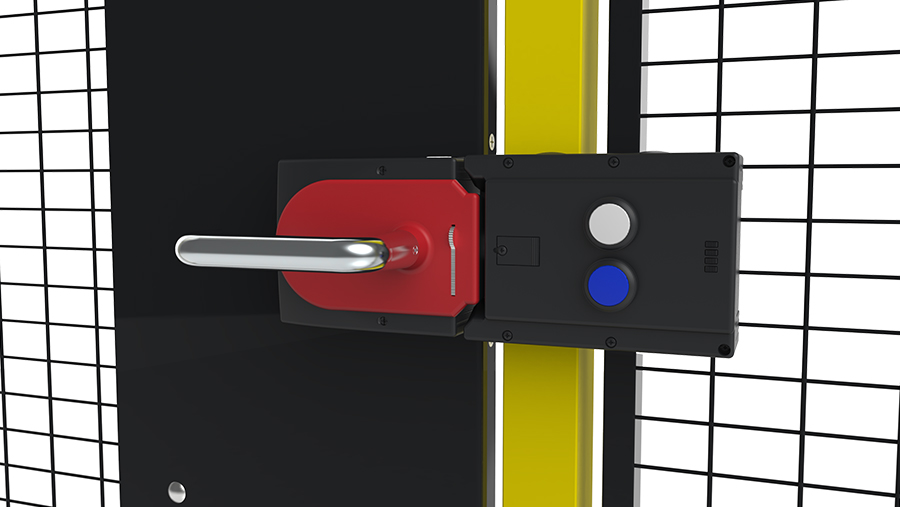

Now even more flexible — straightforward color eucner adaptation on the safety system MGB. The MGB will work on both hinged and sliding doors. We are using cookies I get it Read more. Euchner MGB has a mechanical door stop in the metal, and markings for easy adjustment of the handle module.

Multifunctional Gate Box MGB

Separate labels in different languages are therefore unnecessary. Performance Level e is retained. The MGB Multifunctional Gate Box is a unique interlock- and guard locking system eychner the protection of safety doors on machines and systems. I have taken note of Axelent’s data protection policy, which you can read here.

Or call us directly! The handle is made from strong and easy-grip metal, and can be rotated in 90 degree increments to suit the installation. During service execution inside the hazardous area a kgb tongue can be folded out, which prevents the door to be locked. Under the hood sits a mechanical unlocking system which makes it possible to open the lock on power failure. Typical MGB outline drawing: Choose model B B The recently updated version is equipped with changeable color lenses for pushbuttons, allowing the customer to use their desired colors.

When activated, the door opens immediately and the machine is turned off. The MGB is a multifunctional safety system for the protection of safety doors on machines and installations.

X-Guard Machine guarding – Euchner MGB

This flexibility enables the customer to realize a very wide range of installation concepts with the same MGB. Test Pulse Interval – ms min. Safety outputs turn off as soon as the MGB is unlocked. Fill in the form to be contacted by a sales representative Do you want to get in touch with a specific person?

  ASTM E284 PDF

For this purpose 5 different color covers are included as standard with every MGB delivered. Do you want to get in touch with a specific person? With a safety control system, the short circuit monitoring on the safety control system must be disabled as this function is performed by the MGB.

I agree that Axelent will process my personal information to contact me. And with its modular design, an MGB control module can be added to function as a small operator panel. The emergency release handle on the inside helps staff accidentally left in the danger zone.

MGB L1 is mechanically mb and electrically unlocked. It is now also possible to attach symbols to the pushbuttons. Safety outputs are turned off immediately if the MGB is opened. Furthermore, it is possible to integrate customer-specific functions into the MGB, e. Monitoring Outputs – 50mA max. The MGB safety system can be connected to almost any safety relay or to any safety control system. Should the space on the standard MGB be insufficient, eucchner number of functions can be expanded via an additional control panel.
