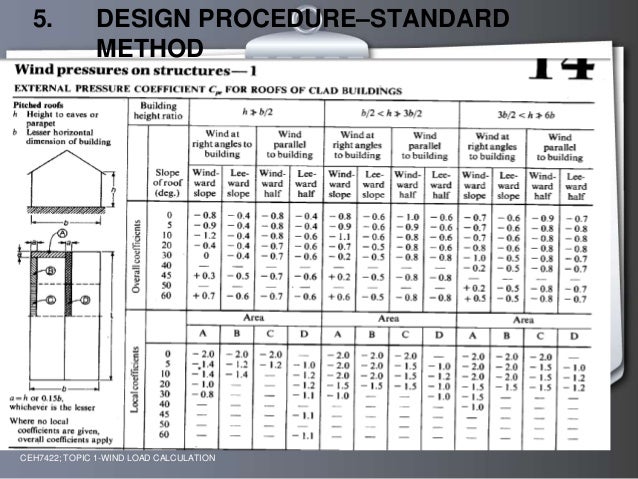

View Notes – CP3 Chapter V Part 2 Wind Loading from CIVIL ENGI 44 at Jomo Kenyatta University of Agriculture and Technology. CODE OF PRACTICE. CEH; TOPIC 1-WIND LOAD CALCULATION 2. Codes of practice & Guideline CP3: Chapter V: Part 2 BRU Technical Guideline no. CP3: Chapter V: Part 2: September: wind pressure on any fascia at the eaves or on any gable between eaves and ridge on duopitch canopies, or to.

Author: Voodootaxe Feran
Country: Kazakhstan
Language: English (Spanish)
Genre: Health and Food
Published (Last): 23 August 2015
Pages: 390
PDF File Size: 6.32 Mb
ePub File Size: 18.83 Mb
ISBN: 148-2-19653-321-9
Downloads: 92003
Price: Free* [*Free Regsitration Required]
Uploader: Yozshugrel

All masonry construction should also be reinforced and horizontal reinforcement used round corners, between intersecting walls and between columns, infill walls and doors. With turbulent flow there is interchange of energy between layers and therefore mean velocity is almost the main stream speed.

Houghton and Carruthers, In addition, Robertson suggests that some manufacturers of film plastic-clad structures may use incorrect design procedures. Land and Water Service, Technical note No. Gravity-induced convection and the rotation of the earth are responsible for nearly all atmospheric motion; if a volume of air becomes lighter than its surroundings it will rise and start a new phase in wind.

Wind forces on emergency storage structures: Combating wind loads

Building Research Establishment, Department of the Environment. Values of Cf are shown in Figure 4 and an example of aind calculation is shown below. No charge is made for single copies of this publication sent to governmental and educational establishments, research institutions and non-profit making organizations working in countries eligible for British Government Aid.

Although such measures may not be applicable to relief stores, efforts can be made to site loaeing structures away from areas which experience strong winds, such as hill tops and valley bottoms, and behind any available cover or wind break.

Racking forces and uplift forces were applied using hydraulic rams which operated a series of cables, beams and load spreaders. Air density d varies with air ,oading and pressure see Table 5.

This figure will be revised on account of Hurricane Gilbert Lawson Large roof overhangs should be avoided, or vents included in these to relieve wind pressure. Combating wind loads For film plastic-clad greenhouses which are not dissimilar to emergency stores the Ministry of Agriculture Fisheries and Food MAFF, recommend that cladding is anchored at ground level either by gripping with a continuous structural member fixed to the main hoops, or by being buried in the trench not less than mm deep by mm wide, firmly backfilled and rammed with earth.

  ALCON INFINITI VISION SYSTEM PDF

Free copies cannot normally be addressed to individuals by name, but only under their official titles. Short extracts of material from this bulletin may be reproduced in any non advertising, non-profit making context provided that the source is acknowledged as follows: For rigid rectangular buildings with double pitch roofs pressure coefficients for individual external loads are shown in Tables 3 and 4 BSIEaton Paper presented to 10th CIB Congress.

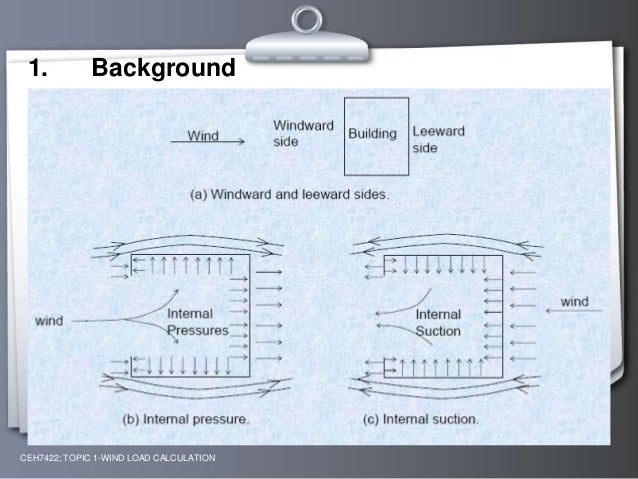

On the windward side, open doors and windows will increase the pressure inside and will increase the loading on parts of the roof and walls already subjected to external suction; on the leeward side these openings will decrease the pressure and decrease the force on the roof, but increase the force on the windward wall see Figure 5. Such structures should be supplied with an erection manual giving:. This movement of air and the forces it exerts are the subjects discussed next.
